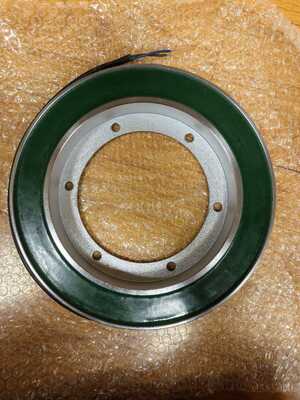

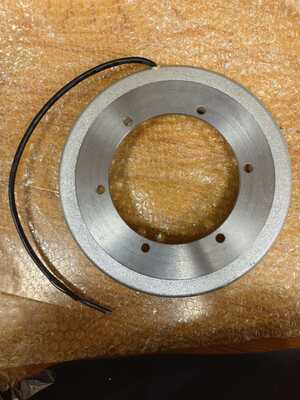

Electromagnet For The Leonardo Machine Clutch

Original Code 2558290 9340339  2548228 2589012

Rapier Tape ,Rapier Weaving Machine,Textile Accessories & Parts.

Overview and Function

The electromagnet for the Leonardo machine clutch is a critical component in the picking/finding clutch system of Vamatex Leonardo rapier looms. This electromagnetic clutch operates based on the principle of electromagnetism, where electrical energy is converted into magnetic force to achieve mechanical movement for engaging and disengaging power transmission .

When energized, the electromagnetic coil generates a magnetic field that attracts the armature plate, engaging the clutch to transmit torque from the driving shaft to the driven shaft. This provides clean, efficient, and fast-response operation with engagement times typically in the range of 30-100 milliseconds .

Technical Considerations

When selecting or replacing the electromagnet:

• Voltage Rating: Ensure compatibility with your machine's control system (typically 24V DC)
• Response Time: The clutch engagement time is critical for proper loom operation and synchronization
• Heat Dissipation: Electromagnetic clutches generate heat during operation; ensure proper ventilation and avoid exceeding temperature ratings
• Air Gap: The magnetic force and engagement time depend on the air gap between the armature and friction surfaces

WHY CHOOSE OUR PRODCUTS?

The electromagnet is part of a complete clutch assembly (part 0446001)

, so if you're experiencing issues, you may need to inspect the entire clutch system including the armature plate, friction discs, and associated mechanical components.

CODE DESCRIPTION 2686004 KEYBOARD FOR LEONARDO 2558288 MAGNET FOR WEFT SELECTOR 2558290 COMPLETE MOTOR SELECTOR 2634266 TAKE UP SUPPORT 　 SUPPORT FIXING 　 CLUTCH MOVEMENT COMPLETE GROUP 9300064 COMPLETE RIGHT CUTTING DEVICE 9300085 COMPLETE LEFT CUTTING DEVICE 2110764 EXAGONAL SHAFT FOR FIXING CUTTERS 892031 COMPLETE SUCTION SISTEM FOR LEONARDO 2548694 NONIO RING 9260033 FRAMES GUIDE WITH FELT AND SCREW 　 SIGNAL LAMP LEONARDO 2509092 GRIPPER OPENER 2509120 REACTION 9120291 SUPERIOR TEFLONER 2140462 BLOCCO TEMPIALE 108003 DADO BLOCCO TEMPIALE 2110568 PERNO TEMPIELE 2147026 BUCCOLA TAGLIO 9100086 MORSETTO DENTARELLA 2690340 CUSCINETTO ALBERO SECONDARIO 2548378 COLLARE 2536208 CULLA SUPERIORE 23004 VITE 2398088 RUOTA 2398086 RUOTA 32007 VITE
