Product Details:
|
| Usage: | Projectiles For Weaving Machine | Loom Type: | P7200 SULZER Projectile Loom |
|---|---|---|---|
| Name: | Spare Parts Of Shuttleless Looms | Feature: | Size And Force Is Exactly |
| High Light: | K3 Projectile textile machinery parts,Sulzer projectile textile machinery parts,P7200 textile machinery spares |
||

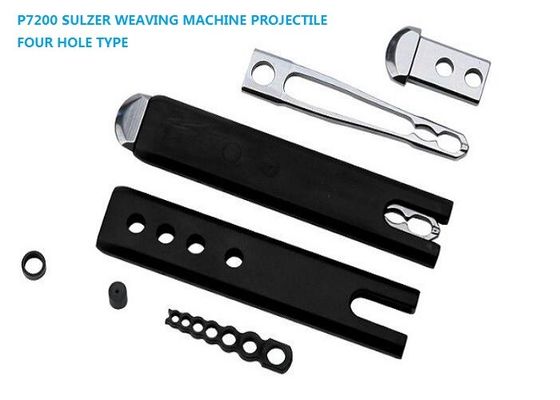

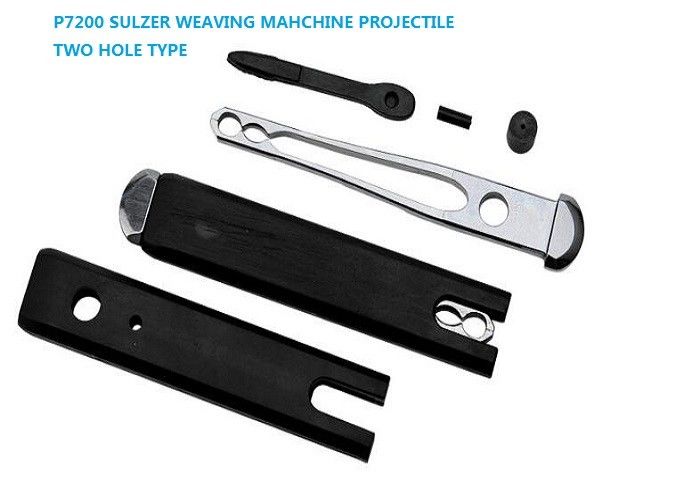

P7200 SULZER Projectile Loom Parts , K3 Projectile ,Smooth , L/R Knurled and differnent force,Weaving Machine
| P7200 PROJECTILE GRIPPER TYPES | |||
| 716340000 | PROJECTILE GRIPPER SMOOTH | K3,19N/1900GR. | |
| 713693000 | PROJECTILE GRIPPER SMOOTH | K3,22N/2200GR. | |
| 714314000 | PROJECTILE GRIPPER SMOOTH | K3,21.6N/2200GR. | |
| 716339000 | PROJECTILE GRIPPER SMOOTH | K3,25N/2500GR. | |
| 714315000 | PROJECTILE GRIPPER SMOOTH | K3,24.5N/2500GR. | |
| 716797000 | PROJECTILE GRIPPER WITH GROOVE | K3,19N/1900GR. | |
| 716798000 | PROJECTILE GRIPPER WITH GROOVE | K3,22N/2200GR. | |
| 716684000 | PROJECTILE GRIPPER WITH GROOVE | K3,25N/2500GR. | |
| 715619000 | PROJECTILE GRIPPER WITH GROOVE FOR SHORT RECEIVING UNIT SELVEDGE | K3,24.5N/2500GR. | |
| 716823000 | PROJECTILE GRIPPER LEFT/RIGHT KNURLED | K3,19N/1900GR. | |
| 716718000 | PROJECTILE GRIPPER LEFT/RIGHT KNURLED | K3,22N/2200GR. | |
| 715680000 | PROJECTILE GRIPPER LEFT/RIGHT KNURLED,FOR SHORT RECEIVING UNIT SELVEDGE | K3,21.6N/2200GR. | |
| 716713000 | PROJECTILE GRIPPER LEFT/RIGHT KNURLED | K3,24.5N/2500GR. | |
| 715620000 | PROJECTILE GRIPPER LEFT/RIGHT KNURLED,FOR SHORT RECEIVING UNIT SELVEDGE | K3,24.5N/2500GR. | |
| 714381000 | PROJECTILE GRIPPER LEFT/RIGHT KNURLED,SMOOTH | K3,24.5N/2500GR. | |
| 714926000 | PROJECTILE GRIPPER LEFT/RIGHT KNURLED,SMOOTH FOR SHORT RECEIVING UNIT SELVEDGE | K3,24.5N/2500GR. | |
| P7200 SULZER PROJECTILE LOOM PARTS | |
| PROJECTILE P7200 | |
| PROJECTILE BODY P7200 CARBON | |
| PROJECTILE GRIPPERP 7200 | |
| PROJECTILE RIVET(CARBON)Φ7X8 P7200 | |
| INSIDE BUSH FOR P7200 PROJECTILE GRIPPER | |
| 917750513 | P7200 TOOTHED BELT |
| 719007000 | RH OPENER MS P7200 |
| 917750497 | CENTERING BLADE P7200 COMPLETE |
| 917750123 | CENTERING BLADE |
| PROJECTILE FEEDER GRIPPER P7200 | |
| 917750499 | RH SLIDING PIECE MS P7200 |
| 917750542 | COVERING PLATE FRONT |
| AXLE | |
| LINK P7200 | |
| 717832000 | GUIDE TOOTH CONTROL GAUGE FA L=160MM |
