Heald Wire Weaving Loom Parts Fine Yarn Polyester Monofilament Highest Density

Certification
China SUZHOU HENGHAO IMPORT & EXPORT CO.LTD certification
I'm Online Chat Now

Heald Wire Weaving Loom Parts Fine Yarn Polyester Monofilament Highest Density

Heald Wire Weaving Loom Parts Fine Yarn Polyester Monofilament Highest Density
Heald Wire Weaving Loom Parts Fine Yarn Polyester Monofilament Highest Density Heald Wire Weaving Loom Parts Fine Yarn Polyester Monofilament Highest Density

Large Image :  Heald Wire Weaving Loom Parts Fine Yarn Polyester Monofilament Highest Density

Product Details:
Place of Origin: Jiangsu ,China
Brand Name: HH
Certification: ISO9001 ISO14001
Model Number: High-quality Standard Healds
Payment & Shipping Terms:
Minimum Order Quantity: 5000pcs
Price: Negotiantion
Packaging Details: Package polywood case
Delivery Time: it is according to quantity. normally 20 days after receipt of first payment,
Payment Terms: Payment <=1000 USD, 100% in advance. Payment >=1000 USD, 30% T/T in advance ,balance before shipment. We accept T/T and L/C.
Supply Ability: 10000pcs safty stock

Heald Wire Weaving Loom Parts Fine Yarn Polyester Monofilament Highest Density

Description
Material: Import SUS420J2 Tempered Stainless Steel Feature: Highly Resistant
Use: Weaving Machine Type: Single Or Duplex
High Light:

textile machinery parts

,

textile spare parts

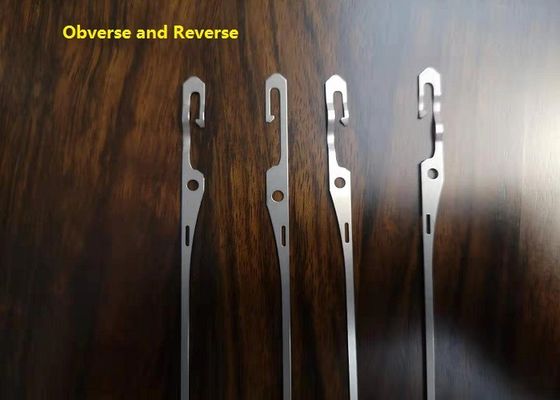

High quality heald wire for weaving loom with the finest yarn polyester monofilament and highest density

  •  High-quality, reliable and a broad assortment of healds and drop wires.
  •  Rapid warp preparation, a high weft insertion rate, minimal production disruptions and flawless fabric quality.
  •  High-quality and innovative details of healds and drop wires are vital when it comes to the economy and productivity of a weaving machine.
  •  More space for the thread, reduces contact pressure and consequently also friction

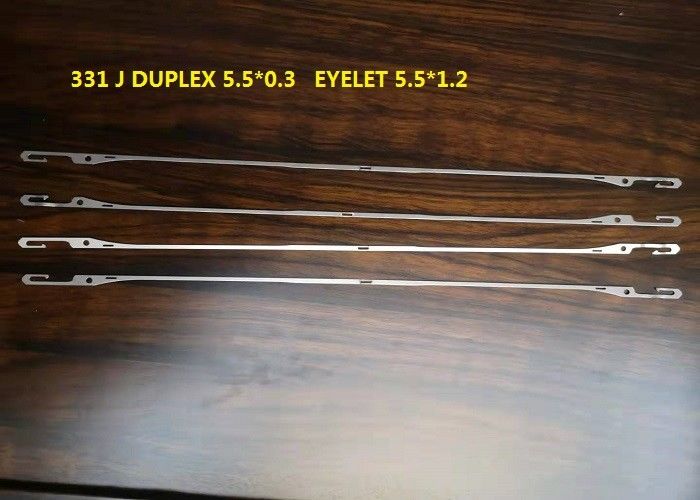

High-Quality Standard Heald Range List
Type Section(mm) Length(mm) Eyelet(mm)
Duplex 5.5*0.3 280;302;330 5.5*1.2
Simplex 5.5*0.3 331 6.5*1.8
Duplex 5.5*0.3; 5.5*0.25 280;331 5.5*1.2;6.5*1.8
Simplex 5.5*0.3 331 6.5*1.8
Duplex 5.5*0.3; 5.5*0.25 280;331 5.5*1.2;6.5*1.8



Obvious Characteristic and the Superiority

1. The Raw Material: Light weight yet rigid and durable,longer life time

2. Originality: The eyelet of the healds , more rounded and smooth edges

3. Suitable for the Automatic drawing-in M/c

4. Optional HD-Eyelet

5.The Unique polishing Process



Heald Wire Weaving Loom Parts Fine Yarn Polyester Monofilament Highest Density 0
