Clamping Loop Projectile Loom Parts , D35 D42 Sulzer Loom Replacement Parts

Clamping Loop Projectile Loom Parts , D35 D42 Sulzer Loom Replacement Parts
Clamping Loop Projectile Loom Parts , D35 D42 Sulzer Loom Replacement Parts Clamping Loop Projectile Loom Parts , D35 D42 Sulzer Loom Replacement Parts

Large Image :  Clamping Loop Projectile Loom Parts , D35 D42 Sulzer Loom Replacement Parts

Product Details:
Place of Origin: East China's Jiangsu Province
Brand Name: HH
Certification: ISO9001 ISO14001
Model Number: Weaving Machine Parts
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: By Negotiation
Packaging Details: 1pcs in plastic bag, 5pcs in one Foam Box
Delivery Time: 5days after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200pcs keep in stock regular

Clamping Loop Projectile Loom Parts , D35 D42 Sulzer Loom Replacement Parts

Description
BRAND NAME: DOBBY FEATURE: Sturdy Structure;Precision-designed;High Durability
Material: Imported Aluminuim Advantage: High Quality Heat-trement For Durable Life
Feature1: Inspect Each Parts Before Shipment Feature2: Size Accroding To Original Drawing
High Light:

sulzer projectile looms spare parts

,

sulzer loom spare parts

CLAMPING LOOP D35 911-839-003 D42 911-639-002 ,SULZER Adaptation Parts ,Textile Accessories & Parts for Replacement

Clamping Loop  For Dobby application machine.

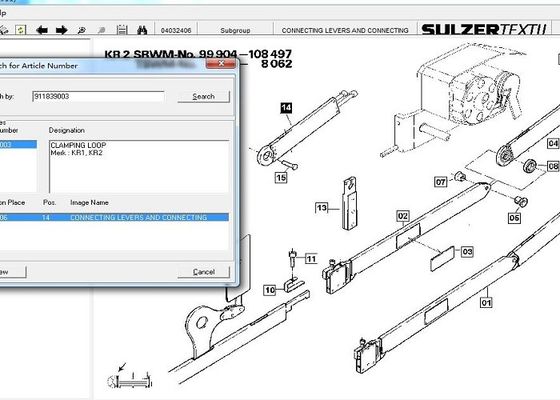

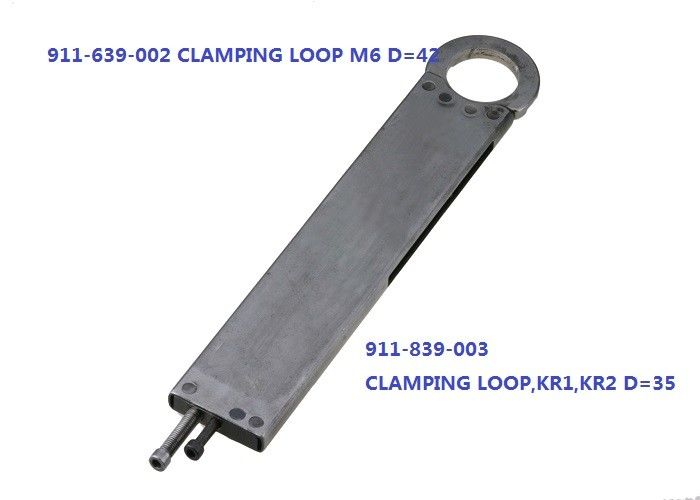

D6 IN PICUTRE 911-639-002-  CLAMPING LOOP, SP M6 D=42

D7 IN PICTURE 911-839-003    CLAMPING LOOP, KR1, KR2 D=35

To perform the regular maintenance of Projectile weaving machine parts (spare parts of shuttle less looms Sulzer PU,TW11,P7100,P7150,P7200,P7300 looms)will use the following items:

Projectile , Projectile grippers ,Body, Guide tooth, Picking shoes, ,Picking levers,Brake lining,Projectile feeders,Projectile returners, Weft end gripper, Scissor, Guide rail,Convenyor Chain,Projectile Lifter,Brake Ring,Cam, Dobbies of Shed Fomation



Please Check The Following Parts For Dobby ,which can be helpful to Maintanace the Looms And Keep good situation Running For weaving.

SR NO Part No. Designation
DOBBY 1 911308412 BUSH 28.15X35.3X6.8
DOBBY 2   ROLLER
DOBBY 3 911308015 SPACING RING D=6.2/28X7.2
DOBBY 4 911209163 SPECIAL RIVET 904 D6X15
DOBBY 5 911208302 TOOTHED PLATE
DOBBY 6 911639002 CLAMPING LOOP SP M6 D=42
DOBBY 7 911839003 CLAMPING LOOP KR1 KR2 D=35
DOBBY 8 628931000 BALL BEARING 17X42X8
DOBBY 9 911308482 SPECIAL COUNTERSUNK SCREW M12X1
DOBBY 10 911308483 SPECIAL NUT M12X1
DOBBY 11   DOBBY PUMP
DOBBY 12 911339385 DRIVING ROD L=957.5
DOBBY 13 911339384 DRIVING ROD L=1184
DOBBY 14 911839053 DRIVING ROD L=1184
DOBBY 15   DOBBY HOOK
DOBBY 16 F29519813 DOBBY SELECTOR
DOBBY 17   DOBBY TRACTION ROD
DOBBY 18   BLOCK FOR DOBBY TRACTION ROD
DOBBY 19 F191527 DOBBY LEVER
DOBBY 20   SUPPORT PLATE
DOBBY 21 S399970 LINK
DOBBY 22   BLOCK PLATE SET
DOBBY 23   RIVETⅠ
DOBBY 24   RIVETⅡ
DOBBY 25   BUSH
DOBBY 26   DOBBY NEEDLES
DOBBY 27 PNA25312 SPRING FOR DOBBY NEEDLES
DOBBY 28   INDEXING ARM FOR KR2
DOBBY 29 F12075602 INDEXING ARM FOR P7100
DOBBY 30   INDEXING ARM BLOCK
DOBBY 31   PLATE A178X101X47
DOBBY 32 911167185 PLATE B178X47
DOBBY 33 911341186 PLATE B178X47
DOBBY 34 F18302008 DRIVE WHEEL
DOBBY 35   DRIVE WHEEL
DOBBY 36
DOBBY 37   DOBBY ECCENTRICITY HOLD A
DOBBY 38 911409025 LOCKING SCREW M16*1.25*10
DOBBY 39 628056000 LOCKING SCREW M16*1.25*7

Clamping Loop Projectile Loom Parts , D35 D42 Sulzer Loom Replacement Parts 0

Other accessores and  parts for weaving machines (RAPIER LOOM, Picanol, Sulzer, Tsudakoma, Somet, Vamatex, Toyota etc.)

The parts we made has high quality and competitive price, and we also produce the special parts as you need,which have been exported to the Italy ,India, Pakistan ,Bangladesh,Turkey ,Iran and the other countries and regions. Our products enjoy the best satisfy from customers , made according to the original Parts Drawing and samples , senior technical team , advanced production equipment , stable and strong production capacity , strict inspection
