Product Details:
|
| LOOM TYPE: | PU,P7100,P7150 | USAGE: | PROJECTILE WEAVING LOOM |
|---|---|---|---|
| WOKRING AREA: | TUCKING UNIT | Feature: | Highly Durable/Corrosion Resistant/Rigid Construction/Long Functional Life |
| Feature2: | Inspect Each Parts Before Shipment | Feature3: | Size Accroding To Original Drawing |
| High Light: | sulzer projectile looms spare parts,looms machine spare parts |
||

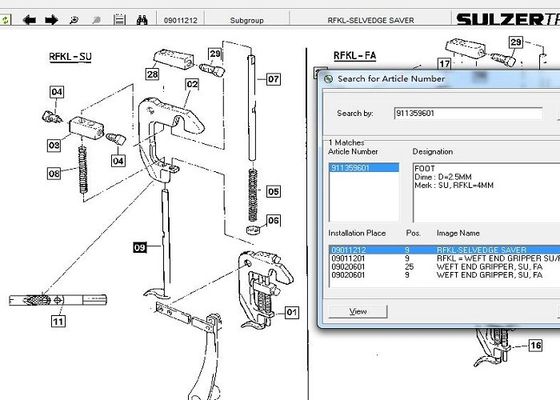

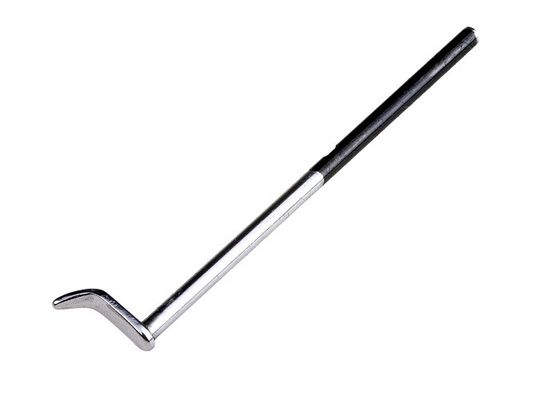

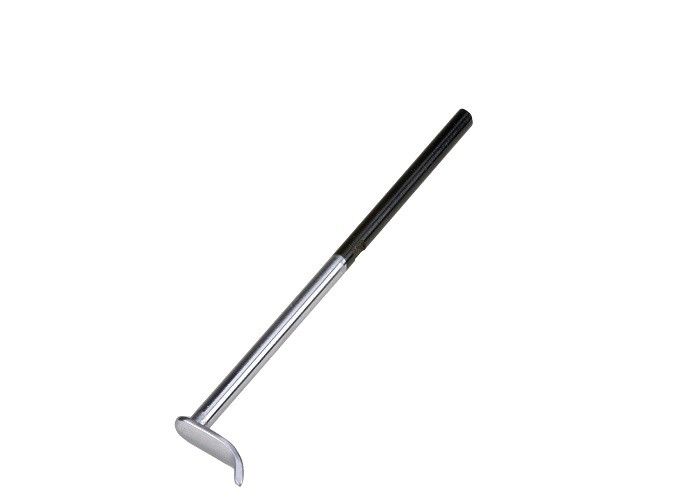

Weft End Gripper Foot SU D=2.5 P7100 911-359-601;PU 911-132-289;P7150 270-001-364, RFKL-SELVEDGE SAVER,SUZLER LOOM PARTS
Weft End Gripper Foot U/ FA
---SELVEDGE FROMATION
---Long Life Running ,Original size
|
Part No. |
Designation |
|
911232229 741570000 |
TORSION SPRING |
|
911232229 741570000 |
TORSION SPRING |
|
911132323 |
WEFT END GRIPPER BODY SU |
|
911359295 |
WEFT END GRIPPER BODY SU L/R KNURLED |
|
911132324 |
WEFT END GRIPPER BODY FA |
|
911859393 |
WEFT END GRIPPER BODY FA L/R KNURLED |
|
911132176 |
SPECIAL SCREW M5X0.5X7.5 |
|
911132177 |
SPECIAL SCREW M5X0.5X10 |
|
911132289 |
WEFT END GRIPPER FOOT SU |
|
911359601 |
WEFT END GRIPPER FOOT SU P7100 |
|
|
WEFT END GRIPPER FOOT SU L/R KNURLED |
|
911459196 |
WEFT END GRIPPER FOOT SU P7150 SMOOTH |
|
|
WEFT END GRIPPER FOOT SU P7150 DIAMOND KNURLED |
|
911132290 |
WEFT END GRIPPER FOOT FA |
|
911359602 |
WEFT END GRIPPER FOOT FA |
|
|
WEFT END GRIPPER FOOT FA L/R KNURLED |
|
9114459146 |
WEFT END GRIPPER FOOT FA P7150 SMOOTH |
|
|
WEFT END GRIPPER FOOT FA P7150 DIAMOND KNURLED |
|

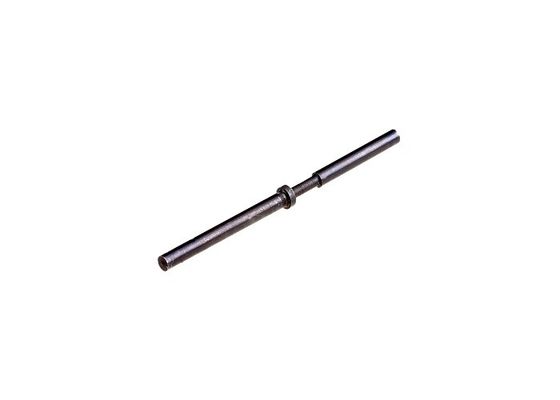

911236152 |
SPRING ROD |
|
719802000 |
SPRING ROD D=2.5X50 |
|

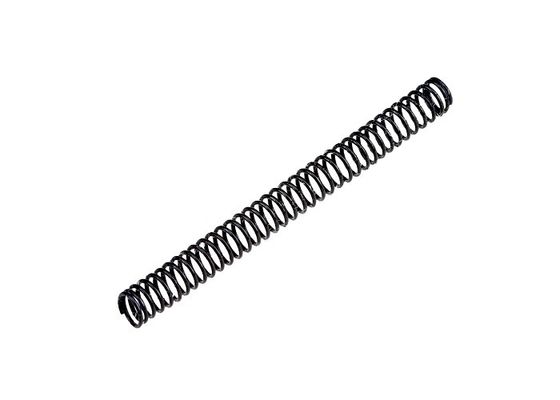

911159292 |
SPRING HARD |
|
911359104 |
SPRING WEAK |
|
911359634 |
SPRING P7150 |
|
911159434 |
SPRING CAP |
Projectile , Projectile grippers ,Body, Guide tooth, Picking shoes, ,Picking levers,Brake lining,Projectile feeders,Projectile returners, Weft end gripper, Scissor, Guide rail,Convenyor Chain,Projectile Lifter,Brake Ring,Cam, Tucking NeedleTo perform the regular maintenance of Projectile weaving machine parts (spare parts of shuttle less looms Sulzer PU,TW11,P7100,P7150,P7200,P7300 looms)will use the following items:
|
SULZER PROJECTILE LOOM PARTS |
|
|
Projectile Loom Type |
Suppling Parts List |
|
PS |
PROJECTILE,PROJ GRIPPER |
|
TW11 |
DRIVE MECHANISM |
|
PU (911) |
PICKING MECHANISM |
|
P7100 |
PROJECTILE LIFTER,OPENER,GUIDE RAIL |
|
P7150/P7250 |
PROJECTILE GUIDE INSERT,SCISSOR |
|
P7200 ( 975) |
PROJECTILE FEEDER,SELECTOR |
|
P7300 |
RECEIVING MECHANISM,PROJ RETURNER |
|
G6200 (965) |
PROJECTILE BRAKE MECHANISM |
|
|
TUCKING UNIT,TEMPLE |
|
|
WEFT SUPPLY |
|
|
LETT-OFF AND DRIVE |
|
|
TAKE-UP DRIVE |
|
|
CAMS |
|
|
HEALD,CAM BOXES |
|
|
DOBBY,SENSOR PARTS |
|
|
TOOLS |
The parts we made has high quality and competitive price, and we also produce the special parts as you need,which have been exported to the Italy ,India, Pakistan ,Bangladesh,Turkey ,Iran and the other countries and regions. Our products enjoy the best satisfy from customers , made according to the original Parts Drawing and samples , senior technical team , advanced production equipment , stable and strong production
capacity , strict inspection .
