Product Details:
|
| Use: | Weaving Machine Parts | Name: | Spare Parts Of Shuttle Less Looms |
|---|---|---|---|
| Feature1: | Size Accroding To Original Drawing | Feature2: | Highly Durable/Corrosion Resistant/Rigid Construction/Long Functional Life |
| Feature3: | Strong Prodcution Capacity | Feature4: | Inspect Each Parts Before Shipment |
| Feature5: | Strict Management System | Feature6: | Complete Quality Guarantee System And Fine Pre-sale And After-sale Service System |
| High Light: | sulzer projectile looms spare parts,looms machine spare parts |
||

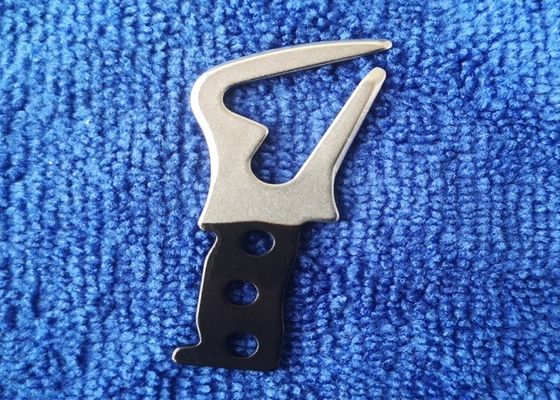

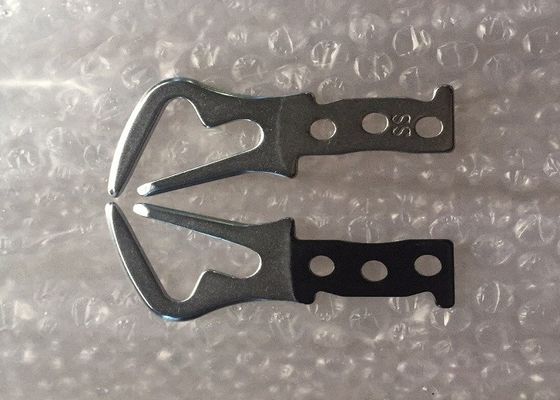

Guide Tooth 911-123-337 etc For Slay Unit of Sulzer Projectile Looms, 130"Width Loom needs 348pcs

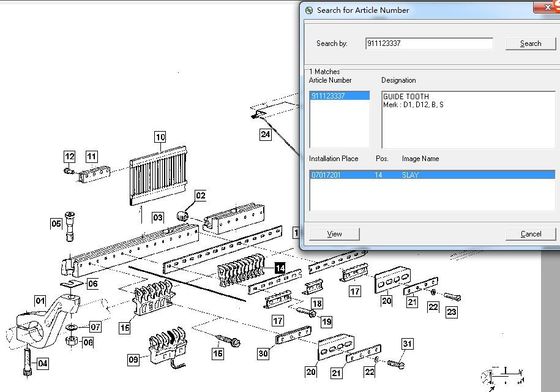

| SLAY UNIT PARTS LIST | |
| 911123307 | GUIDE TOOTH HOLDER LONG 6/6 |
| 911123308 | GUIDE TOOTH HOLDER SHORT 4/4 |
| 911323212 | GUIDE TOOTH ATTACHMENT BAND(ALLTYPE)73"-213" |
| 911323211 | GUIDE TOOTH ATTACHMENT BAND(ALLTYPE)73"-213" |
| 911123337 | GUIDE TOOTH D1 |
| 911123732 | GUIDE TOOTH D2 |
| 911323216 | SCREW M4X23 |
| 911600203 | GUIDE TOOTH CONTROL GAUGE SU L=400MM |
| 911600232 | GUIDE TOOTH CONTROL GAUGE SU L=410MM |
| 911600204 | GUIDE TOOTH CONTROL GAUGE FA L=140MM |
To perform the regular maintenance of Projectile weaving machine parts (spare parts of shuttle less looms Sulzer PU,TW11,P7100,P7150,P7200,P7300 looms)will use the following items:
Projectile , Projectile grippers ,Body, Guide tooth, Picking shoes, ,Picking levers,Brake lining,Projectile feeders,Projectile returners, Weft end gripper, Scissor, Guide rail,Convenyor Chain,Projectile Lifter,Brake Ring,Cam
| SULZER PROJECTILE LOOM PARTS | |
| Projectile Loom Type | Suppling Parts List |
| PS | PROJECTILE,PROJ GRIPPER |
| TW11 | DRIVE MECHANISM |
| PU (911) | PICKING MECHANISM |
| P7100 | PROJECTILE LIFTER,OPENER,GUIDE RAIL |
| P7150/P7250 | PROJECTILE GUIDE INSERT,SCISSOR |
| P7200 ( 975) | PROJECTILE FEEDER,SELECTOR |
| P7300 | RECEIVING MECHANISM,PROJ RETURNER |
| G6200 (965) | PROJECTILE BRAKE MECHANISM |
| TUCKING UNIT,TEMPLE | |
| WEFT SUPPLY | |
| LETT-OFF AND DRIVE | |
| TAKE-UP DRIVE | |
| CAMS | |
| HEALD,CAM BOXES | |
| DOBBY,SENSOR PARTS | |
| TOOLS | |
