Product Details:
|
| Use: | Weaving Machine Parts | Name: | Spare Parts Of Shuttle Less Looms |
|---|---|---|---|
| Feature1: | Size Accroding To Original Drawing | Feature2: | Highly Durable/Corrosion Resistant/Rigid Construction/Long Functional Life |
| Feature3: | Strong Prodcution Capacity | Feature4: | Inspect Each Parts Before Shipment |
| Feature5: | Strict Management System | Feature6: | Complete Quality Guarantee System And Fine Pre-sale And After-sale Service System |
| High Light: | looms machine spare parts,sulzer loom spare parts |
||

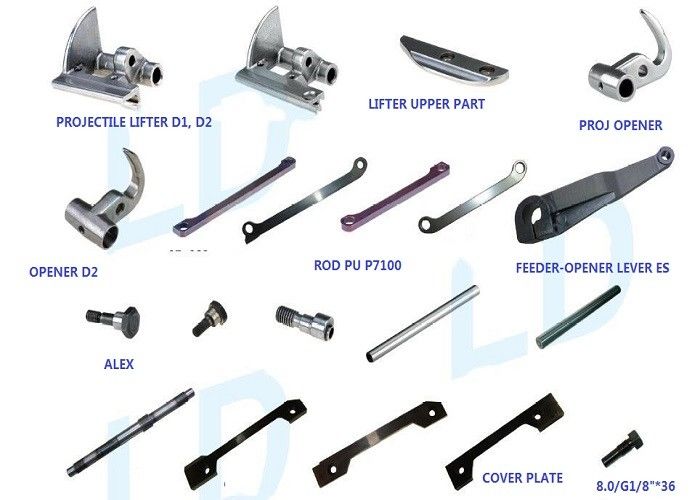

Projectile Lifter, Projectile lifter upper Part ,Projectile Opener, Rod of Sulzer Loom projectile Circulation unit
| PROJECTILE CIRCULATION PART No. | ||

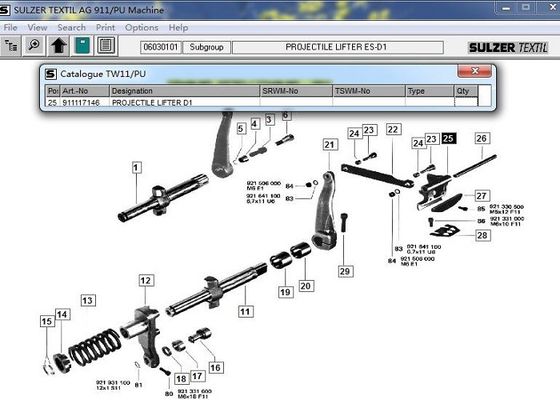

| 911117146 | PROJECTILE LIFTER D1 | PU |
| 911817049 | PROJECTILE LIFTER D1 | P7100 |
| 911817054 | PROJECTILE LIFTER D1 | P7100 |
| 911817058 | PROJECTILE LIFTER P7150 D1 | P7150 |
| 911317053 | PROJECTILE LIFTER D2 | PU |
| 911817063 | PROJECTILE LIFTER P7150 D2 | P7150 |
| 911317057 | PROJECTILE LIFTER UPPER PART D15.8MM | |
| PROJECTILE LIFTER UPPER PART D15.8MM WIDENOUT | ||
| 911317055 | PROJECTILE LIFTER UPPER PART D14.74MM | |
| 911317046 | PROJECTILE LIFTER UPPER PART D2 4.66MM | |
| PROJECTILE LIFTER UPPER PART D24.66MM WIDENOUT | ||
| 911317056 | PROJECTILE LIFTER UPPER PART P7100 D2 | |
| 911318002 | PROJECTILE OPENER D1 | |
| 740400000 | PROJECTILE OPENER P7150 D1 | |
| 911318003 | PROJECTILE OPENER D2 | |
| 740923000 | PROJECTILE OPENER P7150 D2 | |
| 911318015 | ROD PU L166 9X11 | |
| 911618002 | ROD P7100 L166 | |
| 911317066 | ROD L129 D11/11MM | |
| 911317208 | ROD L129 D11/11MM | |
| 911119283 | PROJECTILE FEEDER-OPENER LEVER ES | |
| 912500002 | AXLE SCREW D=9MM L=29MM | |
| 911817004 | AXLE SCREW D=11MM M6 L=29MM | |
| 911118124 | ECCENTRIC AXLE M8X29 | |
| 911317105 | AXLE 9X114 | |
| 911117130 | AXLE 9X124.8 | |
| 740956000 | AXLE P7150 12X130.9 | |
| AXLE Φ10X120 | ||
| 911319117 | WEFT CARRIER FEEDER DRIVE AXLE | |
| 911116254 | COVER PLATE L158 | |
| COVER PLATE L154 | ||
| 911116190 911316408 | COVER PLATE L138 | |
| 911116190 911316408 | COVER PLATE L138 | |
| 911119285 | SPECIAL SCREW 8.0/G1/8"X36S W13 | |
To perform the regular maintenance of Projectile weaving machine parts (spare parts of shuttle less looms Sulzer PU,TW11,P7100,P7150,P7200,P7300 looms)will use the following items:
Projectile , Projectile grippers ,Body, Guide tooth, Picking shoes, ,Picking levers,Brake lining,Projectile feeders,Projectile returners, Weft end gripper, Scissor, Guide rail,Convenyor Chain,Projectile Lifter,Brake Ring,Cam
