Product Details:
|
| Use: | Weaving Machine Parts | Name: | Spare Parts Of Shuttle Less Looms |
|---|---|---|---|
| Feature1: | Size Accroding To Original Drawing | Feature2: | Highly Durable/Corrosion Resistant/Rigid Construction/Long Functional Life |
| Feature3: | Strong Prodcution Capacity | Feature4: | Inspect Each Parts Before Shipment |
| Feature5: | Strict Management System | Feature6: | Complete Quality Guarantee System And Fine Pre-sale And After-sale Service System |
| High Light: | looms machine spare parts,sulzer loom spare parts |
||
| Par No. | English Desp |
| 911820021 | CAM PLATE D1 |
| 912520003 | CAM PLATE D1 |
| 912520041 | CAM PLATE D2 |
| 921330200 | SCREW M4X8 F11 |
| 921450100 | THREADED PIN M6X18 L2 |
| 911120222 | SCISSOR CAM PLATE BUSH AXLE |
| 912120221 | BUSH L=33MM |
| 911136170 | CAMP PLATE |
| 911320066 | CENTERING BLADE D1 |
| 911320069 | CENTERING BLADE D2 |
| 911620037 | CENTERING BLADE WITH CERAMIC |
| 911220171 | CERAMIC BLADE INSERT |
| 911720002 | CENTERING BLADE INSERT D1 |
| 911720003 | CENTERING BLADE INSERT D2 |
| 921330900 | SCREW M4X20 |
| 912520076 | SCISSOR HOLDER |

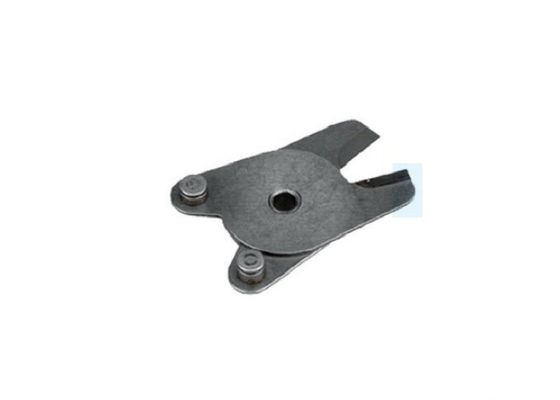

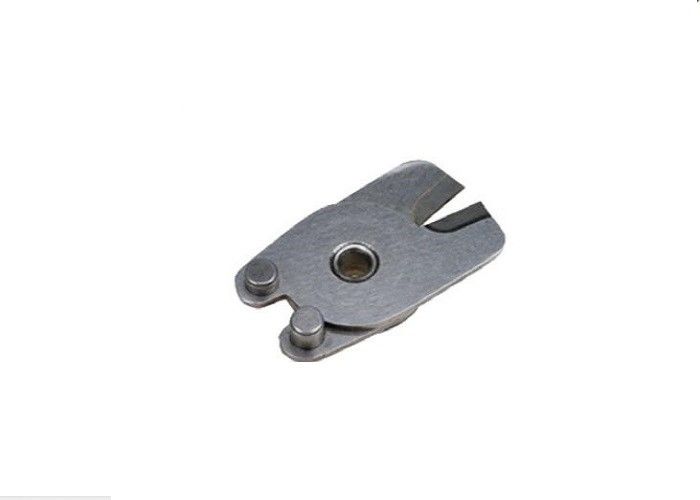

| 911820015 | SCISSOR D1 THICK |
| 911820038 | SCISSOR D1 THIN |
| 911820004 | SCISSOR D2 |
| 621590000 | SCISSOR G6200 |
| 911120224 | ROLLER 7/10X5 |
| 911320068 | ROLLER 7/10X4.2 |
| 911120215 | WEFT SCISSOR LINK |
| 911300056 | AXLE BOLT M6X12.5/10X5.4 |
| 911120132 | TOOTHED SEGMENT SHAFT Z=7 |
| 911120150 | RACK ROD |
| 917750497 | CENTERING BLADE P7200 COMPLETE |
| 917750123 | CENTERING BLADE |
To perform the regular maintenance of Projectile weaving machine parts (spare parts of shuttle less looms Sulzer PU,TW11,P7100,P7150,P7200,P7300 looms)will use the following items:
Projectile , Projectile grippers ,Body, Guide tooth, Picking shoes, ,Picking levers,Brake lining,Projectile feeders,Projectile returners, Weft end gripper, Scissor, Guide rail,Convenyor Chain,Projectile Lifter,Brake Ring,Cam
| SULZER PROJECTILE LOOM PARTS | |
| Projectile Loom Type | Suppling Parts List |
| PS | PROJECTILE,PROJ GRIPPER |
| TW11 | DRIVE MECHANISM |
| PU (911) | PICKING MECHANISM |
| P7100 | PROJECTILE LIFTER,OPENER,GUIDE RAIL |
| P7150/P7250 | PROJECTILE GUIDE INSERT,SCISSOR |
| P7200 ( 975) | PROJECTILE FEEDER,SELECTOR |
| P7300 | RECEIVING MECHANISM,PROJ RETURNER |
| G6200 (965) | PROJECTILE BRAKE MECHANISM |
| TUCKING UNIT,TEMPLE | |
| WEFT SUPPLY | |
| LETT-OFF AND DRIVE | |
| TAKE-UP DRIVE | |
| CAMS | |
| HEALD,CAM BOXES | |
| DOBBY,SENSOR PARTS | |
| TOOLS | |
